There is no pillar support in the middle, which provides more spacious and free space.

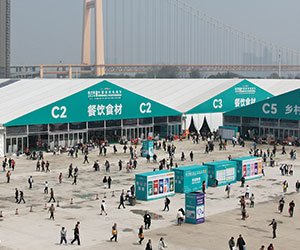

It is especially excellent in large exhibition halls.

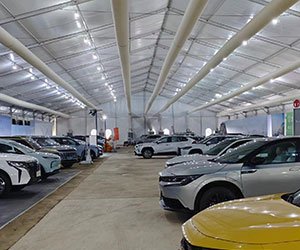

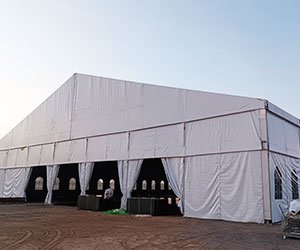

The interior space can be adapted to any event with a maximum width of 70 meters. The A-frame tents with clear spans also offer more options for layout, increasing versatility and functionality. It is ideal for large events,exhibitions and storage.

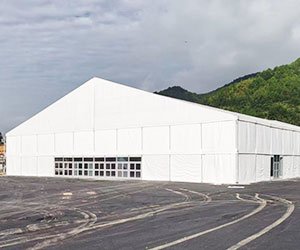

Using stronger aluminum alloy profiles from Fenglu Aluminum band, the frame structure of A frame tents has stronger wind resistance and higher snow load capacity.No matter how harsh the environment is, it can show excellent support in the industrial field, warehouse and military use.
The A frame tent features a pitched roof design with an 18° slope for excellent weather resistance. The pitched roof design blocks wind, prevents snow accumulation and reduces structural stress. The pitched roof is made of a waterproof and UV-resistant PVC cover to prevent damage from rain and sun.
The A-frame tent adopts modular design, providing flexible expansion options. It can not only add or connect extension units as needed to increase space, but also freely adjust the width and height to accommodate large events or changing needs.
| width span(m) | Eaves height(m) | Bay distance(m) | Length | Main Profile(mm) | Max Wind Load |
| 3~10 | 2.5 | 3 | Expands unlimitedly based on 3m | 84X48 | Up to 120 km/h |
| 6~10 | 3 | 3 | Expands unlimitedly based on 3m | 100X48 | |
| 10~30 | 4/6 | 5 | Expands unlimitedly based on 5m | 88X166/ 112X203/ 120X250/ 120X300 | |
| 30~70 | 4/6 | 5 | Expands unlimitedly based on 5m | 120X300/ 120X350/ 150X500 |
| Materials | 6061-T6 Aluminum Alloy Frame,Anodizing.Fenglu Aluminum Band |
| Q235 Steel Components,Hot dip galvanizing | |
| Color | Original Color/ White Coating/ Black Coating |
| Max Wind Load | 120 km/h |
| Max Snow Load | 0.5kN/sqm |
| Features | Sturdy Durable: reliable metal frames ensure stability and long-term uses |
| Easy Setup: prefabricated design for quick and easy installation | |
| Weather Prevention: It withstands high wind and snow loads |
| Materials | High-Strength PVC Coated Fabric |
| Available Options | 850g/㎡ Opaque PVC/ 950g/㎡ Clear PVC |
| Tent Top Color | White/ Transparent/ Customized Color |
| Light Transmittance | Full blackout / Half blackout / Full Transparency |
| UV-Coated | Yes |
| Waterproof | Yes |
| Fire Retardance | B1 |
| Accessories | Available Options |
| Walls | Fabric walls: 650g/㎡ PVC Fabric/ 850g/㎡ PVC Fabric/ 950g/㎡ Transparent PVC Fabric |
| Solid Sidewall: Glass wall/ ABS wall/ Sandwich Panel/ Steel Cladding | |
| Door | Fabric Door: PVC Door with Zipper/ Rope |
| Solid Door: Aluminum Door(Single/Double Door)/ Glass Door(Single/Double Door) | |
| Special Options: Glass Sliding Door/ Rolling Door/ Clamshell Door | |
| Window & Vertilation | Glass Awning Window/ Glass Sliding Window/ Glass Double Casement Window/ Roll-up Window/ Extractor Fan |
| Flooring System | Standard Flooring System/ Stage Flooring System |
| Fixing Accessories | Expansion screws/steel stakes/Load-bearing plate |
Bozo Tent' A frame tent can realize multiple different sizes of structures based on one size of structure. Adjustable width structure: 50m width can be adjusted to 40m width and 30m width; 25m width can be adjusted to 20m width; 15m width is 10m width. Adjustable eaves height structure: 6m height can be adjusted to 5m or 4m.

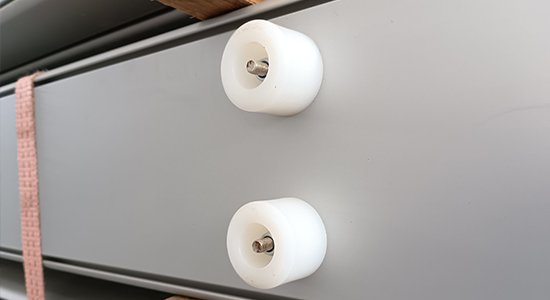

Bozo Tent' A frame tent adopts a more effective protection system. We install rubber protective pads on each diagonal beam and column, which can perfectly protect the surface of the aluminum profile from being scratched. The aluminum profile can increase the life span of at least 3 years.
Modular design: Clear span buildings usually adopt modular design. These components can be quickly assembled and disassembled, saving time and labor. Convenient transportation: Due to its modular characteristics, the disassembled components are small in size and easy to transport and store.
Wall System: The wall frame can be installed with PVC fabric wall, glass wall, ABS wall and sandwich panel wall at the same time. Air Conditioning & Heating Systems: Tents can be equipped with air conditioning and heating systems. These ensure indoor air circulation and a suitable temperature. So tents can be used all year round.
Bozo has a team of project engineers with proven architectural skills who are ready to fully support your projects and activities.
When you are ready to start your next business, contact us today and our architects and engineers will provide you with a quote as quickly as possible.
Over 20 Years of Brand History
200+ Partners
100+ Country Shipments
1000+ Project Service Experience

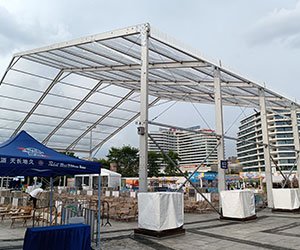

A-frame tents are easier to transport, set up and store. Whether facing strong winds, heavy rain or hail, frame tents can withstand adverse weather conditions better than simple canopies. This makes frame tents the first choice for outdoor events that cannot be affected by weather changes. In addition, the neat structure makes transportation and installation smoother.

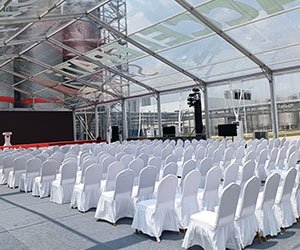

Since there is no pillar support in the middle of the A frame tent, the interior layout of the tent is free and customers can plan it freely. When using tables, chairs and stages at the same time, the 15X100m, 25X60m and 30X50m A frame tents can accommodate 1,000 people.
The A-frame tent is perfect for 3-day or longer events or those outdoor events that are subject to unpredictable weather. Its sturdy frame structure can withstand 120km/h wind and 85kg/㎡ snow load.
The installation time of an A frame tent depends on the size of the tent, the number of installers, the tools used for installation, and the construction environment at the building site.
For example, the installation time of a 15×30 meter tent is 8 hours, involving 10 workers, a forklift, and an aerial vehicle.
