Unique Peach Tent: TFS Tent
TFS tents feature innovative curved poles thatmodify the traditional A-frame, improving
stability and creating a peach-shapedappearancethat is both elegant and durable.
TFS Tent Hot Sale Size
Constructed with a high-strength aluminum frame and durable textile fabrics, the TFS tent combines outstanding durability and economy with a choice of spans ranging from 15 to 50 meters, making it a reliable and cost-effective space solution for all types of scenarios.
20X50 Meter
30X50 Meter
30X100 Meter
50X100 Meter
Futures About TFS Tent
Curved Frame Construction
The TFS canopy adopts a modular curved frame structure, with curved columns combined with a large-span roof to create a unique ‘peach-shaped’ appearance. This design not only enhances visual recognition, but also lowers the centre of gravity through the 25° roof slope, making the canopy 30% more stable in strong winds than a traditional A-roof.
Solid Frame Structure
The main profile is made of 6061-T6 high-strength aluminium alloy, with a hardness of 13HW after oxidation treatment, which increases the corrosion resistance by 5 times and has a service life of up to 20 years. The connecting parts are made of hot-dip galvanised steel, with a galvanising thickness of over 60 microns, ensuring no risk of corrosion in high humidity coastal environments.
Eco-friendly And Lower Costs
The aluminium frame is 100% recyclable, reducing carbon emissions by 30% during tarpaulin production. Some models have a detachable modular design, which is only 1/20th of the size of the erected one after dismantling, reducing transport costs by 40%.
Environmental Adaptation
Wind and Snow Resistance: Designed to withstand typhoons of magnitude 10-12 through tensile design. Snow loads of 0.3-0.5kN/m² are superior to traditional rigid buildings. Temperature Adaptation: The membrane can withstand extreme temperatures ranging from -30°C to 70°C, making it suitable for use in cold or hot areas.
TFS Tent Specification Parameter
| width span(m) | Eaves height(m) | Bay distance(m) | Length | Main Profile(mm) | Max Wind Load |
| 10~30 | 4 | 5 | Expands unlimitedly based on 5m | 88X166/ 112X203/ 120X250/ 120X300 | Up to 120 km/h |
| 30~50 | 4 | 5 | Expands unlimitedly based on 5m | 120X300/ 120X350/ 150X500 |
| Materials | 6061-T6 aluminum structure, anodized. Fenglu aluminum band |
| Q235 Steel Components,Hot dip galvanizing | |
| Color | Original Color/ White Coating/ Black Coating |
| Max Wind Load | 120 km/h |
| Max Snow Load | 0.5kN/sqm |
| Features | Sturdy Durable: reliable metal frames ensure stability and long-term uses |
| Easy Setup: prefabricated design for quick and easy installation | |
| Weather Prevention: It withstands high wind and snow loads |
| Materials | 850g PVC, mildew-proof, flame-retardant, UV-proof, full blackout |
| Available Options | 850g/㎡ Opaque PVC/ 950g/㎡ Clear PVC |
| Fabric color | The standard color is white. Other colors are optional |
| Light Transmittance | Full blackout / Half blackout / Full Transparency |
| UV-Coated | Yes |
| Waterproof | Yes |
| Fire Retardance | B1 |
| Accessories | Available Options |
| Walls | The standard configuration is 650g PVC. The optional walls are glass wall, ABS wall and sandwich panel wall |
| Solid Sidewall: Glass wall/ ABS wall/ Sandwich Panel/ Steel Cladding | |
| Door | Fabric Door: PVC Door with Zipper/ Rope |
| Solid Door: Aluminum Door(Single/Double Door)/ Glass Door(Single/Double Door) | |
| Special Options: Glass Sliding Door/ Rolling Door/ Clamshell Door | |
| Window & Vertilation | Glass Awning Window/ Glass Sliding Window/ Glass Double Casement Window/ Roll-up Window/ Extractor Fan |
| Flooring System | Standard Flooring System/ Stage Flooring System |
| Fixing Accessories | Expansion screws/steel stakes/Load-bearing plate |
Business Partner
TFS TENT VS Normal Tent
| PARAMETRIC | TFS TENT | NORMAL TENT |
| Wind Resistance | 120 km/h (equivalent to a force 12 typhoon) | 80-100 km/h (Force 8-10 wind) |
| Snow Load | 0.4 kN/m² (approx. 40cm of snow) | 0.2-0.3 kN/m² (20-30 cm of snow) |
| Build Speed | 50 metre span canopy within 48 hours | 72 hours or more for same size |
| Fire Rating | Germany DIN4102 B1, China GB8624 Grade B1 | Most products are only B2 rated |
TFS Tent Application Scenario
The modular design and extreme environmental adaptability of the TFS tents differentiate them for exhibition, industrial storage and emergency disaster relief.

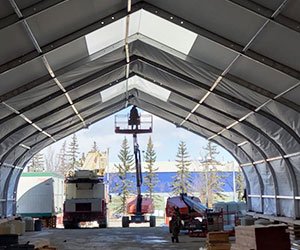

Industrial Warehouse

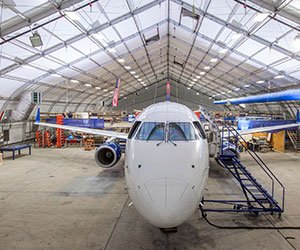

Aircraft Hangar
Sports Field

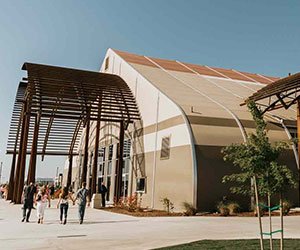

Exhibitions
Bozo has a team of project engineers with proven architectural skills who are ready to fully support your projects and activities.
When you are ready to start your next business, contact us today and our architects and engineers will provide you with a quote as quickly as possible.
Over 20 Years of Brand History
200+ Partners
100+ Country Shipments
1000+ Project Service Experience
Contact Us By
Email: pangantoni6866@gmail.com
Tel: +8615777444557
Whatsapp: +8615777444554
Address: No.3 Min’an Road, Dagang Town, Nansha District, Guangzhou City, Guangdong Province, China
Contact Us
FAQ
1. What is a TFS Structure Tent and How Does It Compare to Traditional Tents?
The TFS Structure Tent is a heavy-duty, modular shelter system engineered for durability, adaptability, and long-term use in demanding environments.
Unlike traditional event tents, which often prioritize lightweight portability over structural integrity, TFS tents combine aerospace-grade 6061-T6 aluminum frames with 850g waterproof PVC fabric.
This design ensures resistance to extreme weather conditions, including 120km/h windload, heavy snow loads (up to 85kg/sqm), and UV radiation.
Key Differentiators:
Modularity: Expandable from 6 meters width to 60 meters width configurations using interlocking components.
Commercial-Grade Use: Certified for fire resistance (NFPA 701) and OSHA compliance for construction sites.
Multi-Season Functionality: Optional thermal liners and snow gutters adapt the tent for winter events or desert environments.
Ideal for outdoor weddings, industrial storage, disaster relief camps, and pop-up retail spaces, TFS tents outperform traditional polyethylene or nylon tents in longevity (8–10 years with proper care). For a full comparison, explore our TFS vs. Competitors Guide.
2. How to Assemble a TFS Structure Tent Safely and Efficiently?
Assembling a TFS Structure Tent requires 8–12 people and follows a streamlined process:
Step 1: Site Preparation
Clear debris and level the ground. Use optional interlocking flooring for uneven terrain.
Verify local permit requirements for large installations (>400 sq ft).
Step 2: Frame Assembly
Connect color-coded aluminum poles using patented quick-lock joints (no tools required).
Secure the base with weighted footplates (concrete) or ground anchors (grass/soil).
Step 3: Fabric Installation
Drape the canopy over the frame and attach tension straps to corner grommets.
Tighten ratchet buckles evenly to prevent fabric sagging.
Safety Tips:
Avoid assembly in winds exceeding 25 mph.
Wear gloves when handling steel-reinforced edges.
Watch our Step-by-Step Assembly Video for visual guidance.
For large-scale installations (>1,000 sq ft), we recommend hiring TFS-certified technicians.
3. What Are the Best Applications for TFS Structure Tents?
TFS Structure Tents are versatile across industries:
A. Event Management
Weddings: Accommodate 100+ guests with clear-span designs (no obstructive center poles).
Festivals: Link multiple tents for food courts or VIP lounges.
B. Industrial Use
Construction Sites: Protect equipment from rain/snow with lockable sidewalls.
Agriculture: Create temporary livestock shelters or crop storage.
C. Emergency Response
Deploy as mobile medical units or disaster relief hubs within 2 hours.
D. Retail
Seasonal pop-up stores with customizable branding panels.
Case studies show a 30% cost reduction compared to renting permanent structures for 6+ month projects.
4. How to Weatherproof a TFS Tent for Extreme Conditions?
TFS tents are pre-engineered for harsh climates, but these upgrades maximize performance:
For Heavy Rain:
Install angled snow gutters to prevent water pooling.
Seal seams with TFS-supplied waterproofing tape.
For High Winds:
Add diagonal guy wires and sandbag anchors.
Use vented sidewalls to reduce wind resistance.
For Snowy Climates:
Upgrade to thermal-lined fabric (R-value: 4.5) and heated flooring.
Clear snow buildup every 12 hours using soft brooms.
Pro Tip: Pair with our ClimateGuard Monitoring System to receive real-time weather alerts via SMS.
5. How Does the TFS Warranty Work and What’s Covered?
TFS offers tiered warranties to match user needs:
Standard Warranty (3 Years):
Covers manufacturing defects in frames and fabric.
Includes free replacement parts (excludes labor).
Commercial Pro Warranty (5 Years):
Extends to UV degradation and joint corrosion.
Priority 24/7 customer support.
Exclusions:
Damage from improper assembly or unapproved modifications.
Natural disasters (e.g., tornadoes, floods).
6. Can TFS Tents Be Customized with Branding or Accessories?
Yes! Customization options include:
A. Branding
Full-color digital printing on sidewalls (max resolution: 1440 dpi).
Illuminated LED signage mounts.
B. Functional Add-Ons
HVAC compatibility (up to 5-ton units).
Electrical kits with GFCI outlets and cable management.
C. Aesthetic Upgrades
Clear vinyl windows for panoramic views.
Decorative drapery hooks and chandelier mounts.
Request a Customization Catalog to explore 50+ modular accessories.
7. What Maintenance is Required for Long-Term Durability?
Follow this checklist to extend your tent’s lifespan:
Monthly:
Inspect seams and reapply waterproofing spray.
Lubricate joints with silicone-based lubricant.
Seasonally:
Pressure-wash fabric (max 1,200 PSI) to remove mold/mildew.
Tighten all bolts and straps.
Storage:
Fold fabric loosely (never crease).
Store in a climate-controlled, rodent-proof area.
Download our Maintenance Schedule Template for reminders.
8. Are TFS Tents Environmentally Friendly?
TFS prioritizes sustainability:
Materials: 80% recycled aluminum frames
9. How Do I Choose the Right Size TFS Tent?
Use this formula:
Guests/Equipment:
10×10 ft: Fits 8–10 seated guests or 2 pallets.
20×40 ft: Fits 100 guests or 12 parking spaces.
Add Buffer Space:
Allocate 20% extra area for walkways/equipment.
Regulatory Limits:
Check local fire codes for maximum occupancy.
Try our 3D Tent Configurator to visualize layouts.
10. Where Can I Buy Authentic TFS Tents and Avoid Counterfeits?
Purchase securely through:
Official Website: Exclusive discounts and custom quotes.
Red Flags for Counterfeits:
Missing QR-coded certification tags.
Prices >20% below MSRP.
Poorly welded joints or misspelled branding.
Report suspicious sellers to support@tfs-tents.com for a $100 reward.
